Integrating SonarQube with Jenkins

Recently, we got a requirement where Grails Development team needs to have a one-click interface to run units test cases for their Grails application and send the results to SonarQube.

SonarQube is a web-based application which is used for centralized management of code quality. We decided to integrate it with Jenkins to provide a one click solution.

Scenario: Integrate SonarQube with Jenkins to run unit test cases and publish results to SonarQube.

Here is the step-by-step procedure to perform the scenario:

1. Setup a Jenkins server if already not using.
2. Goto plugin-manager of Jenkins to install “SonarQube Plugin”.

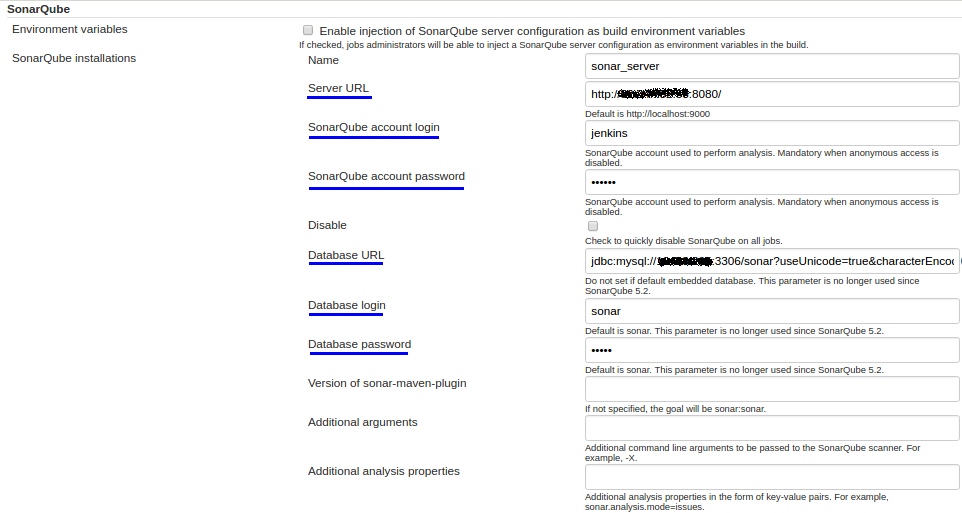

3. Goto “System-configuration” of Jenkins to provide “SonarQube” server’s details as below.


4. Create a Jenkins job and choose one source code management option (say git).
5. Under build, add “Execute Shell” as build step and write commands to run unit tests. For example:


   [js]#!/bin/bash
   cd /path/to/code/
   grails clean-all –non-interactive –plain-output;
   grails refresh-dependencies;
   grails -Dgrails.env=test test-app:unit –non-interactive –plain-output
   grails test-app -coverage -xml[/js]

6. Add “Invoke Standalone SonarQube Analysis” as another build step and add below lines to “Analysis properties” block:


   [js]sonar.projectKey=App Name- Any Identifier
   sonar.projectName=Project1
   sonar.projectVersion=1.0.0
   sonar.projectDescription=Static analysis for the AppName
   sonar.sources=path/to/code/src, path/to/code/grails-app
   sonar.groovy.cobertura.reportPath=path/to/code/target/test-reports/cobertura/coverage.xml
   sonar.language=grvy
   sonar.sourceEncoding=UTF-8[/js]

7. That’s all.

Now, run the Grails application job and results could be seen on SonarQube server after job completion.
