Harnessing GCP for Gaming: Deploying Xonotic with Agones on GKE
GCP Gaming eco-system
While Google Cloud Platform (GCP) doesn’t offer a dedicated gaming service, it provides a comprehensive set of tools for building a scalable gaming infrastructure. With components like Google Kubernetes Engine (GKE) for container orchestration, Compute Engine for virtual machines, and Cloud Storage for asset management, developers can create a powerful backend. Services like Cloud SQL manage player data, Cloud CDN speeds up asset delivery, and Load Balancing ensures smooth multiplayer experiences. Together, these GCP tools enable developers to create a scalable, reliable gaming ecosystem.

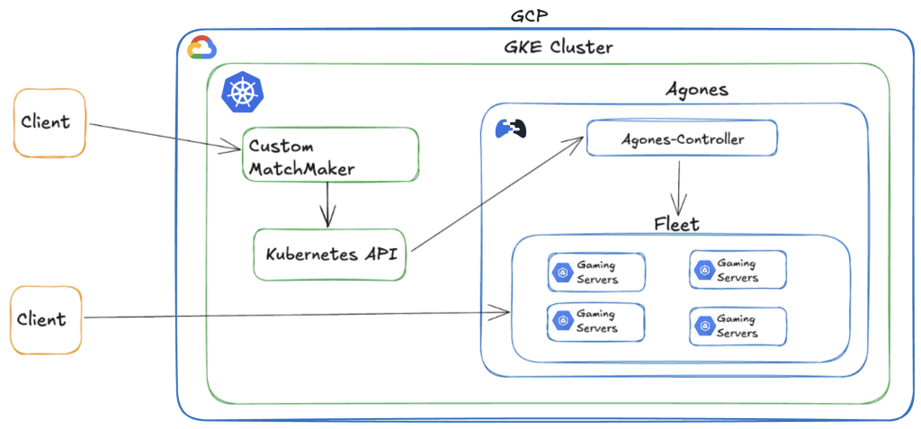

What is Agones
Agones is an open-source tool specifically built for managing game servers on Kubernetes. It offers a framework that streamlines the deployment, scaling, and overall management of multiplayer game servers, which is crucial given the unique challenges that come with gaming environments.
Key Features of Agones
- Game Server Management – Agones provides custom Kubernetes resources, such as GameServer and Fleet, tailored for game server deployment and management.
- Fleet Management – We can create fleets of game servers, allowing for efficient scaling and management. This means you can run multiple instances of the same game server and easily manage their lifecycle.
- Automatic Scaling – Agones support autoscaling based on player demand. As players join or leave, Agones can automatically spin up or down game servers to meet the needs of your player base.
- Health checks and Recovery – Agones include health checks to monitor the status of game servers. If a server becomes unhealthy, Agones can automatically restart it to ensure a smooth gaming experience.
- Session Management – The platform allows for session management, enabling you to track player sessions, matchmaking, and connections more effectively.
Read more: Building the Future of Multiplayer Games with AWS GameLift: Key Strategies for Success
Create Kubernetes Cluster and Setup Agones
Note – We will set up a Kubernetes cluster on Google Cloud Platform (GCP) and install the Agones components to manage game servers. Once the setup is complete, we’ll deploy a Xonotic game server on the cluster and connect to it using the Xonotic client.

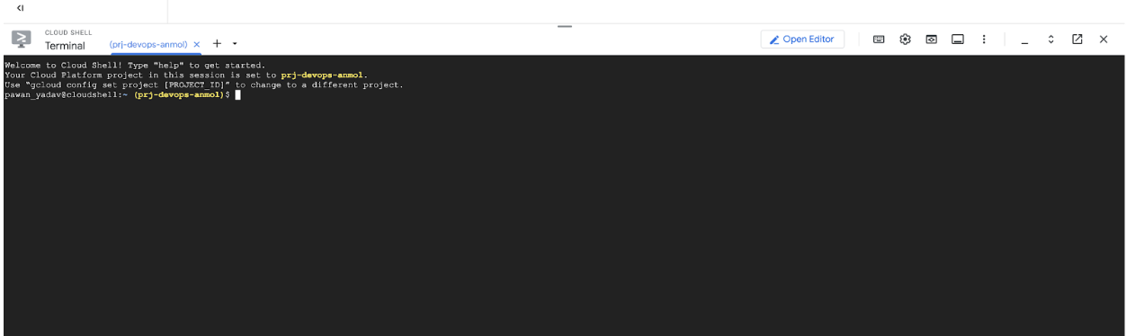

Step 1 – Open Cloud Shell
Shell Fig No. 1

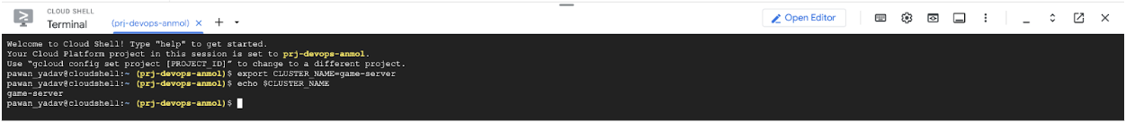

Step 2 – Export CLUSTER_NAME
| $export CLUSTER_NAME=game-server |

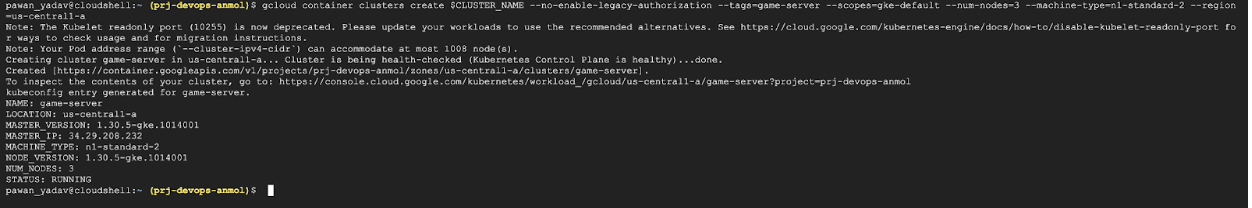

Step 3 – Now create Kubernetes cluster by using below command
| $gcloud container clusters create $CLUSTER_NAME –no-enable-legacy-authorization –tags=game-server –scopes=gke-default –num-nodes=3 –machine-type=n1-standard-2 –region=us-central1-a |

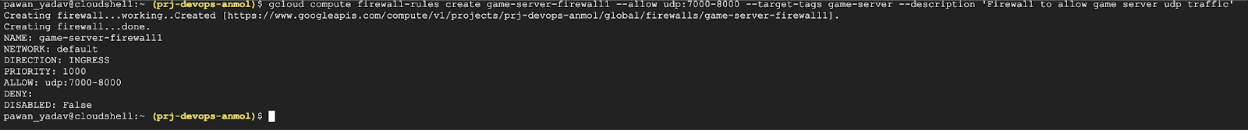

Step 4 – Create Firewall Rule
| $gcloud compute firewall-rules create game-server-firewall –allow udp:7000-8000 –target-tags game-server –description ‘Firewall to allow game server udp traffic’ |

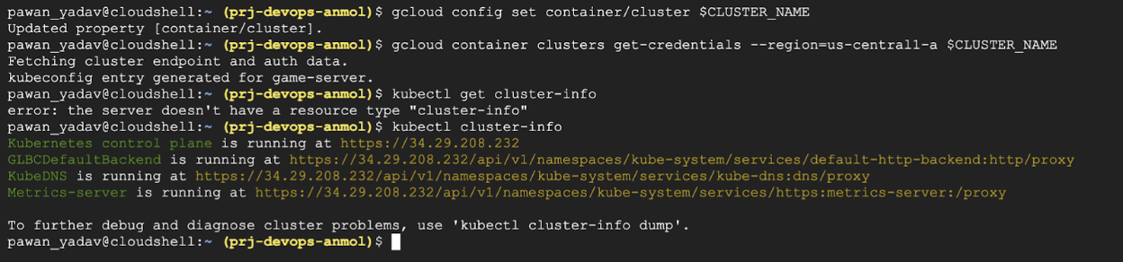

Step 5 – Connect to Cluster
| $gcloud config set container/cluster $CLUSTER_NAME $gcloud container clusters get-credentials –region=us-central1-a $CLUSTER_NAME $kubectl cluster-info |
Now, we will install Agnoes

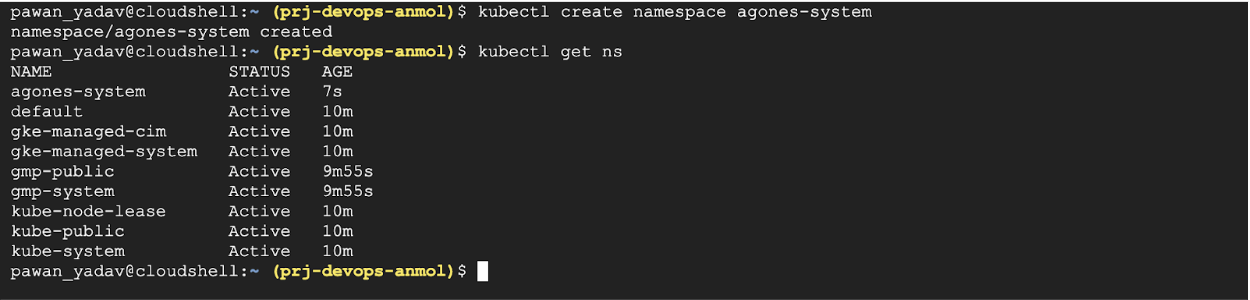

Step 6 – Create agones-system Name Space
| $kubectl create namespace agones-system |

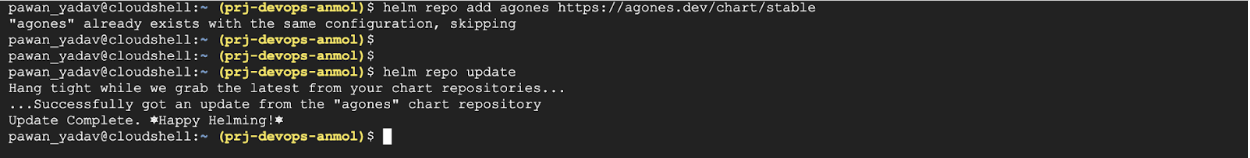

Step 7 – Add agones repo
| $helm repo add agones https://agones.dev/chart/stable $helm repo update |

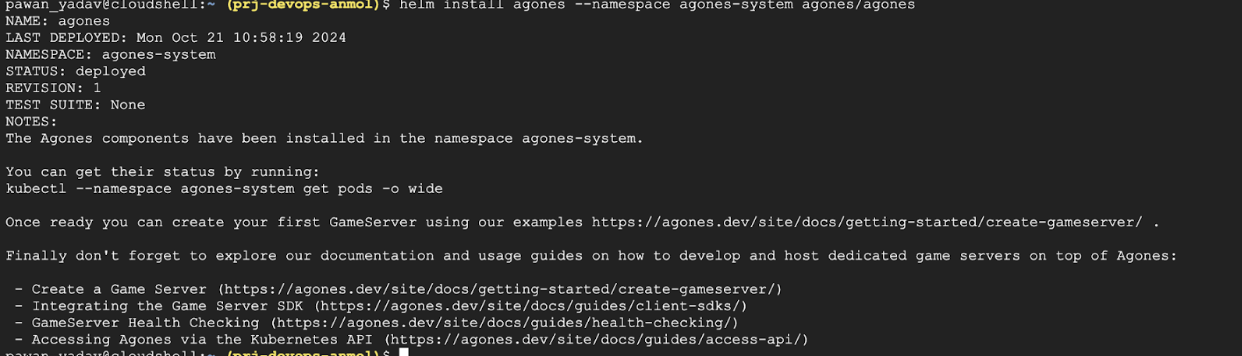

Step 8 – Install agones
| $helm install agones –namespace agones-system agones/agones |

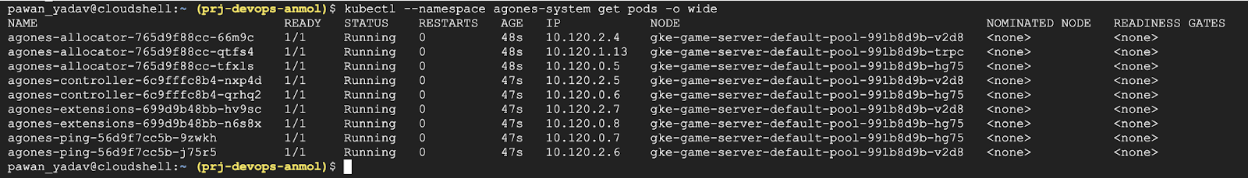

| $kubectl –namespace agones-system get pods -o wide |
Here, We can see all agones components are up and running.
Step 9 – Create Fleet
| $kubectl apply -f https://raw.githubusercontent.com/googleforgames/agones/release-1.44.0/examples/xonotic/fleet.yaml |
| $kubectl get fleet |

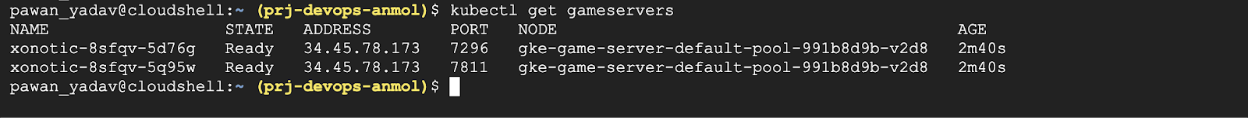

| $kubectl get gameservers |
Install Xonotic Client on Linux Machine

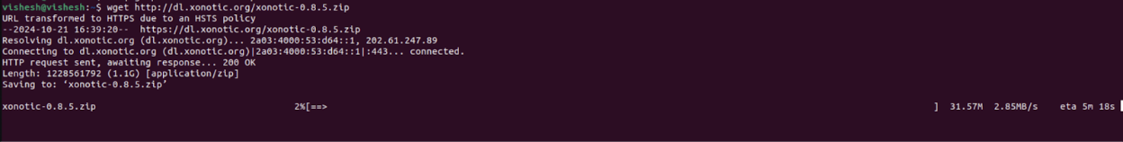

Step 1 – Download Xonotic game binary & extract it.
| $get http://dl.xonotic.org/xonotic-0.8.5.zip $unzip xonotic* |
Step 2 – Go to xonotic folder and execute the below file.
| $cd xonotic $bash xonotic-linux-glx.sh |

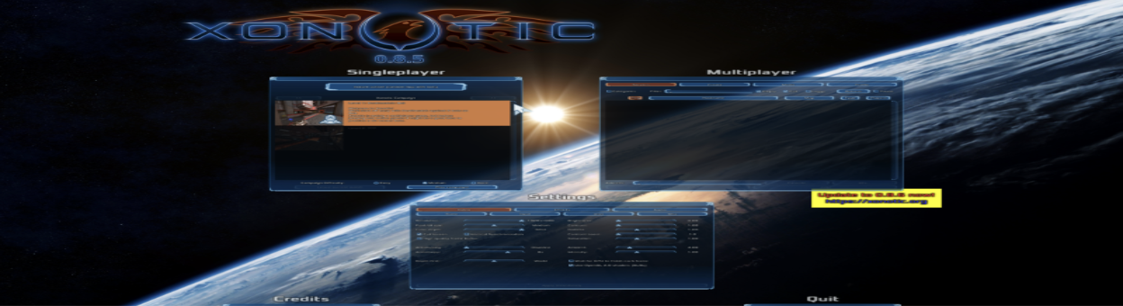

Now, Xonotic client has been started

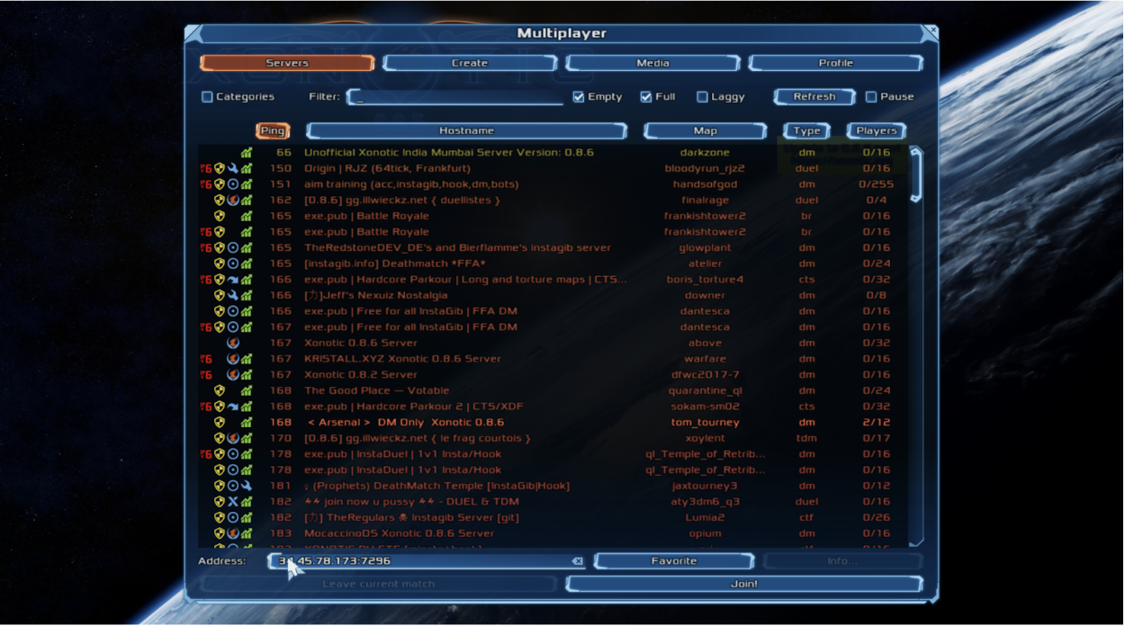

Step 3 – Click on Multiplayer > Servers
Get gameserver IP and port using this command (kubectl get gameservers)
Add paste here.

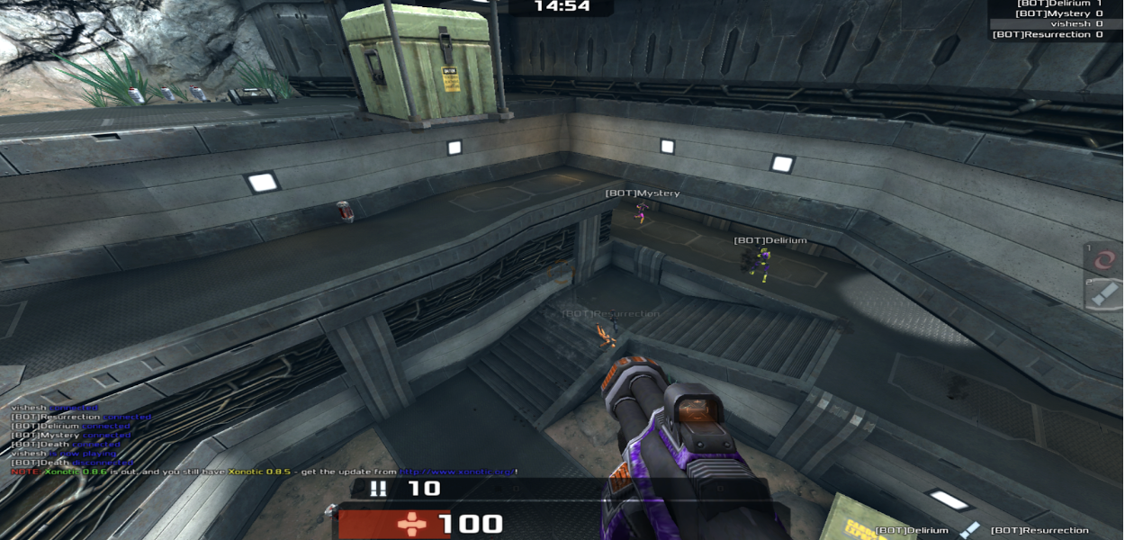

Click on Join, Here we go…
Conclusion
Integrating Google Cloud Platform (GCP) with Agones provides a scalable and efficient solution for managing multiplayer game servers. With GCP’s robust infrastructure and Agones’ specialized tools, developers can easily build seamless, responsive gaming experiences. Whether supporting a small community or millions of players, this combination offers the flexibility to scale as needed. As the gaming industry evolves, GCP and Agones give developers the edge to deliver high-quality, immersive gameplay at scale.
